Card Reader

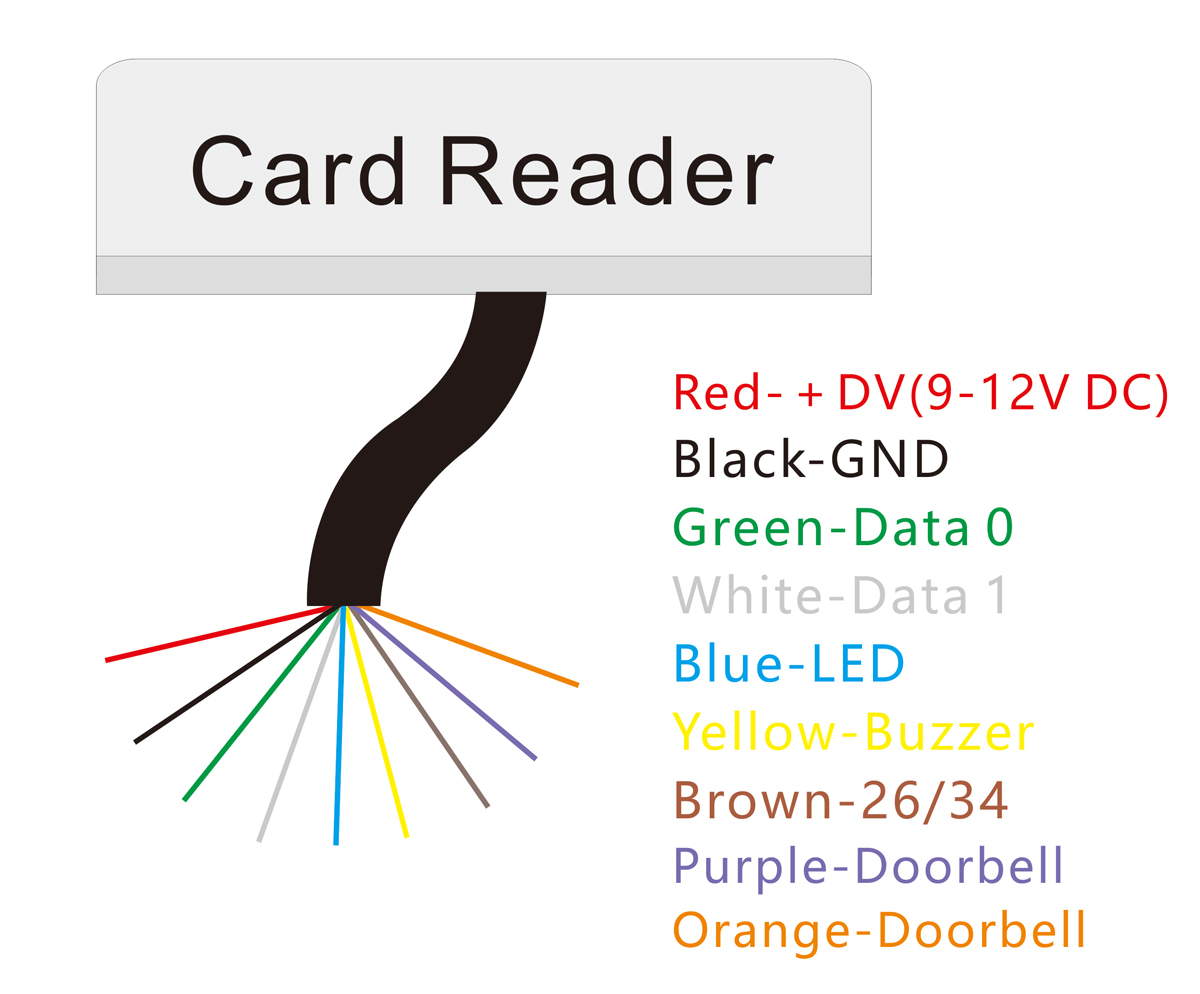

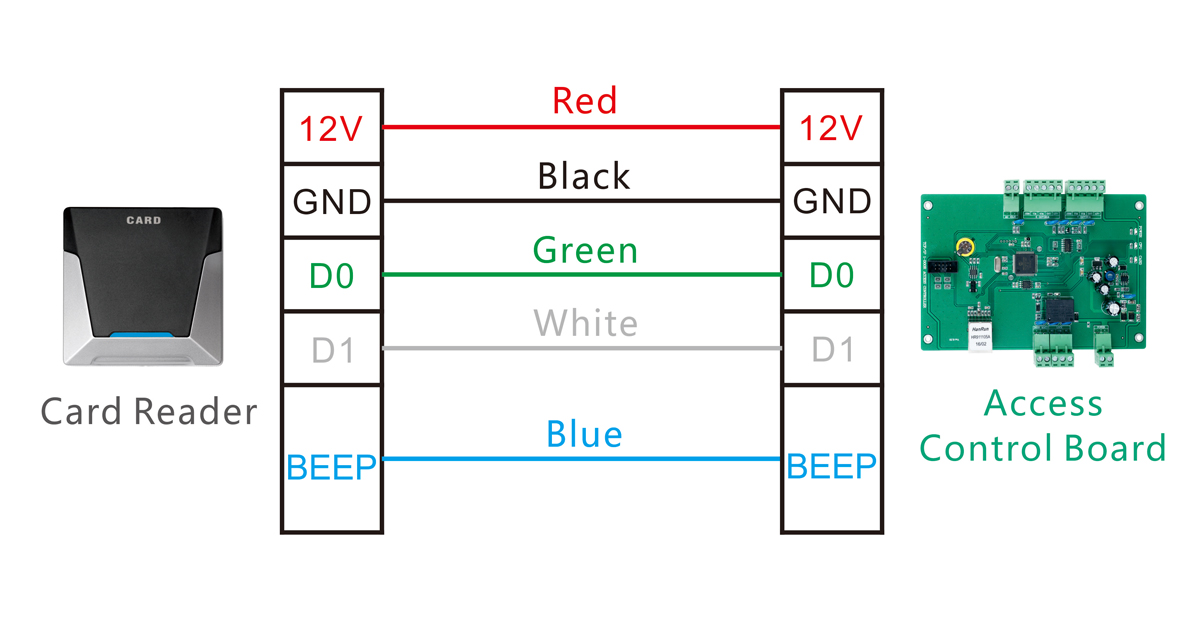

Wiring Instruction：

The card reader support wiegand26 or 34 format output, and provides LED control and beep control lines.

Red + 12V: working voltage: DC10.8-13.8v - > standard DC 12V

Black GND: Ground

Green DO: Data 0

White D1: Data 1

Blue LED: LED

Yellow BUZ：Buzzer

Brown FOR：WG26/34
